Rating

The Rating LOP provides a standardized way to rate items within a TouchDesigner project. Each item is identified by a string and assigned a score between 0.0 and 1.0. Ratings are persisted to a JSON file on disk, making it easy to track preferences, evaluate generated content, or collect feedback over time. It can be used manually from the parameter panel or programmatically by AI agents through its exposed tools.

Agent Tool Integration

🔧 GetTool Enabled 2 tools

This operator exposes 2 tools that allow Agent and Gemini Live LOPs to rate items and retrieve sorted ratings for AI-driven evaluation and quality assessment workflows.

Use the Tool Debugger operator to inspect exact tool definitions, schemas, and parameters.

When connected to an Agent LOP, the Rating LOP exposes two tools:

1. rate_item — Assigns a numerical score (0.0 to 1.0) to an item. If Agent Selects Item is enabled on the GetTool page, the agent must provide the item name. Otherwise, it rates whatever is currently set in Item to Rate.
2. get_ratings — Retrieves previously rated items from the ratings file. The agent can sort results by highest or lowest rated, and limit the number of results returned.

Using with an Agent

1. Place a rating operator in your network.

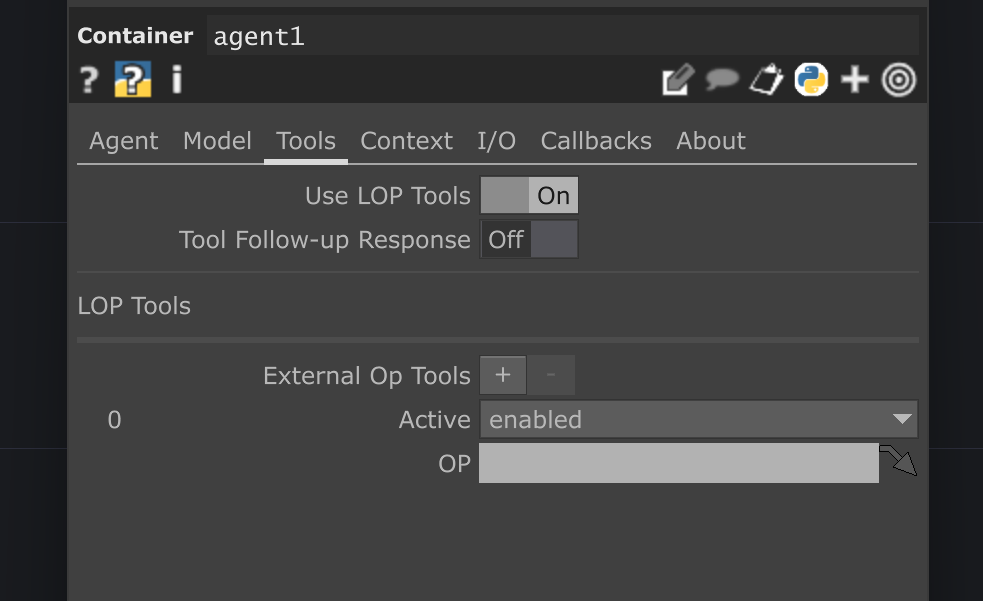

2. Select your agent operator and go to its Tools page.

3. Enable Use LOP Tools.

4. In the External Op Tools sequence, find an empty block and drag your rating operator onto the OP parameter field.



   Drag / drop the Rating LOP here!

5. Set the Mode for that tool block to enabled.

6. Instruct the agent in your prompt to use the rating tools when evaluating content.

Example prompt:

“You are an art critic. Analyze the provided image and rate it from 0.0 to 1.0 based on composition and color harmony. Use the rate_item tool to submit your rating.”

Configuring Agent Behavior

On the GetTool page:

• Agent Selects Item — When enabled, the agent must specify which item to rate. When disabled, the agent rates whatever is currently in the Item to Rate field. This is useful when you want to control the item externally and let the agent only decide the score.
• Tool Info — Add contextual information that gets appended to tool descriptions. For example, “Rate on artistic quality only” gives the agent additional guidance.

Input/Output

Inputs

None — items and ratings are configured via parameters or provided by agent tool calls.

Outputs

• ratings_table (DAT) — A table with rating and item columns containing all ratings from the current file. This table updates automatically whenever a rating is written, undone, or the file path changes.

Usage Examples

Manual Rating

1. On the Rating page, enter a name in the Item to Rate field (e.g., “render_v3”).
2. Adjust the Rating slider to your desired score.
3. Pulse Rate Item to save the rating to disk.
4. The Last Rated Item and Output Display fields confirm the action.

Auto Rate Mode

1. Enter an item name in Item to Rate.
2. Enable Auto Rate on Change.
3. Every time you adjust the Rating slider, the rating is automatically saved — no need to pulse Rate Item.

Undoing a Rating

Pulse Undo Last Rating to reverse the most recent rating action. If the item was newly added, it is removed entirely. If it previously had a different score, that score is restored. Only the single most recent action can be undone.

File Storage

Ratings are saved as JSON files in a ratings_lop subfolder within the chosen base directory.

• Storage Location controls where ratings are saved. Set to Project Folder to use the current TouchDesigner project directory, or Custom Folder to specify a path manually in Rating Folder.
• Rating File sets the filename (without extension). The .json extension is added automatically.
• Last Rating File (read-only) shows the resolved path currently in use.

The operator handles backwards compatibility automatically: if a ratings file exists at an older location (without the ratings_lop subfolder), it reads from there and migrates the data to the new location on the next write.

Troubleshooting

• “Error: Item is empty” — The Item to Rate field is blank. Enter a name before rating.
• Ratings not saving — Check that Storage Location is set correctly. If using Custom Folder, make sure Rating Folder points to a valid, writable directory.
• Agent cannot rate — Verify that Enable Tools is turned on in the GetTool page. If Agent Selects Item is off, make sure Item to Rate has a value so the agent has something to rate.
• Undo does nothing — Only the single most recent rating can be undone. If you have already undone once or no rating has been made this session, there is nothing to reverse.

Parameters

Rating

Item to Rate (Item) op('rating').par.Item Str

Default:

"" (Empty String)

Rating (Rating) op('rating').par.Rating Float

Default:

0.0

Range:

0 to 1

Slider Range:

0 to 1

Auto Rate on Change (Autorate) op('rating').par.Autorate Toggle

Default:

False

Rate Item (Rateitem) op('rating').par.Rateitem Pulse

Default:

False

File Settings Header

Storage Location (Storagelocation) op('rating').par.Storagelocation Menu

Default:

project

Options:

project, custom

Rating Folder (Ratingfolder) op('rating').par.Ratingfolder Folder

Default:

"" (Empty String)

Rating File (Ratingfile) op('rating').par.Ratingfile Str

Default:

"" (Empty String)

Last Rating File (Lastratingfile) op('rating').par.Lastratingfile Str

Default:

"" (Empty String)

Status Header

Last Rated Item (Lastrateditem) op('rating').par.Lastrateditem Str

Default:

"" (Empty String)

Output Display (Outputdisplay) op('rating').par.Outputdisplay Str

Default:

"" (Empty String)

Undo Last Rating (Undolastrating) op('rating').par.Undolastrating Pulse

Default:

False

GetTool

GetTool Settings Header

Enable Tools (Enabletools) op('rating').par.Enabletools Toggle

Default:

False

Tool Configuration Header

Tool Info (Toolinfo) op('rating').par.Toolinfo Str

Optional additional information to include in the tool descriptions for the AI agent.

Default:

"" (Empty String)

Agent Selects Item (Agentselectsitem) op('rating').par.Agentselectsitem Toggle

If True, the agent must provide the item to rate. If False, the agent rates the item currently specified in the "Item to Rate" parameter.

Default:

False

Changelog

v1.1.02025-07-18

• GetTool Integration: The operator is now fully GetTool-enabled, allowing AI agents to programmatically rate items and retrieve rating data.
• Upgraded Base Class: Inherits from DotLOPUtils to leverage advanced features for asynchronous operations and standardized tool creation.
• New Agent Tools:
• rate_item: Allows an agent to assign a rating (0.0-1.0) to an item. The tool can be configured to either require the agent to specify the item or to rate the item currently loaded in the operator's parameters.
• get_ratings: Allows an agent to retrieve a list of existing ratings, with options to sort the data (e.g., by highest or lowest rated) and limit the number of results.
• New Parameters: Added a "Gettool" page with parameters to configure the agent tools:
• Enabletools: Master toggle for all agent functionality.
• Agentselectsitem: Controls the behavior of the rate_item tool.
• Toolinfo: Allows for adding custom text to the tool's description for more specific agent instructions.
• Refactored Logic: The internal _write_rating method has been refactored to be more modular and now serves both manual parameter changes and agent tool calls, returning a status dictionary.
• TODO for get_ratings: Added a placeholder to implement sorting by most_recent and least_recent, which will require adding timestamps to the rating data in a future update.

v1.0.02025-07-18

• Initial Release: Introduces the rating operator.
• Core Functionality: Allows rating of any item (identified by a string) with a 0-1 float value, rounded to 5 decimal places.
• File Storage: Saves and loads ratings to/from a JSON file.
• Supports saving to a dedicated ratings_lop subfolder within the project folder or a custom user-defined folder.
• Includes silent, backwards-compatible migration from legacy file locations.
• Live Data Display: Features a ratings_table DAT that displays the contents of the currently selected ratings file in real-time, with rating displayed as the first column.
• Operator Controls:
• Rateitem: Pulse parameter to manually save a rating.
• Autorate: Toggle to automatically save a rating when the value changes.
• Undolastrating: Pulse parameter to undo the single last rating action.
• ResetOp: Pulse parameter to clear the operator's state (table, status parameters) without deleting the source file.
• Status Parameters: Provides read-only parameters for Lastrateditem and Lastratingfile for quick reference.

Related Operators

• Agent
